The WolfPack 1080p 6x6 AV Over IP Matrix POE Switcher sends HDMI video and audio to 6 TVs up to 450 feet via CAT6/7 with flexible LAN routing and tablet, PC, copper, and fiber network control.

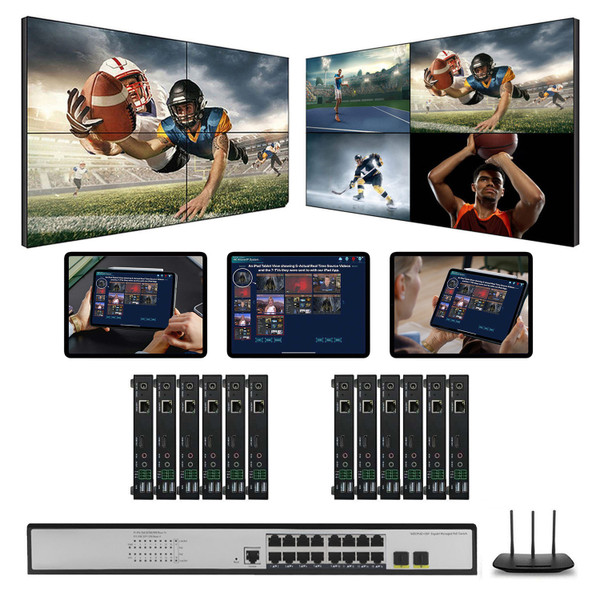

1080p 6x6 AV Over IP Matrix Switcher Configuration:
- 6 - 1080p HDMI to IP Transmitters to 450'
- 6 - 1080p HDMI to IP Receivers to 450'
- 1 - 16-Port Rack mount 1G IGMP POE Managed Ethernet Switch
- 1 - WiFi Router
- 1 - 19" Rack Mount Kit for up to 14-Transmitters
1080p 6x6 AV Over IP Matrix Switcher Features:
- Wireless Real Time Video iPad Preview: Preview the source video on a tablet before sent it to the TVs. That means your iPad will show, in real time, the videos that are on, say, all your DirecTV receivers. If you have 6-DirecTV receivers all set to different channels you'll see 6-different real-time videos, not pictures, but real time video on the iPad. You then can send them, if you choose.
- Apps & Windows Control: This LAN based 6x6 HDMI Matrix Switcher allows any input to be routed to any output; or the same input to be routed to all outputs, or any combination all controlled with an iPad and Android App, optional wall mounted touchscreens, and a Windows PC.
- Video Wall Support: You can create a system with Video Walls of any size, and quantity based upon the number of outputs you have with input & output HDMI resolutions supporting up to 1920x1080@60Hz. The 6x6 HDMI LAN Matrix is shown in the picture.
- Cascadeable Ethernet Switches: Optionally, ethernet switches be cascaded and still act as a one large matrix. This is great for multiple floors and multiple rooms. All the many TVs will be in perfect synch with each other.
- VLAN Support: This 6x6 LAN based HDMI Matrix Switcher can be installed on your existing LAN as it have VLAN capability. Our VLAN HDMI Matrix System uses VLAN technology to isolate and protect the HDMI signals from other traffic on your network. Devices on the same VLAN can communicate with each other as if they were on the same physical network, even if they are connected to different switches or routers.
- Build Your Own (BYO) or Buy Pre-configured Systems: We offer two ways to purchase our systems, one is to BYO and the the other is buying this preconfigured 6x6 POE AV Over IP Matrix Switcher.
Compare this 1080p 6x6 POE AV Over IP Matrix Switcher with Others:
- Wireless Real Time Video Preview
- iPad shows live source video
- Supports a VLAN
- AV Over IP w/POE Technology
- Rename Sources & Displays on tablet
- WIFI iPad & Android Apps
- 1080p video via 1G Network Switch
- Bandwidth is only 7-Mbps
- Latency is only 80ms
- Seamless 4-frame (60ms) Switching
- Video walls up to a 7x7 (49-TVs):
- Any Size Video Walls
- Any Qty Video Walls
- Windows software control
- Unlimited Save & Recall presets
- Plug & Play (DHCP IP address)
- Supports UI custom control
- JSON API for IP & serial control
- 19" Rack Mount cage up to 14-TXs
- Extends HDMI to 450' with CAT6/7
- Supports H.264 and H.265 protocols
- SEC Security Compliance
- HDCP 2.2 Compliant
- Separate audio outs
- Scalable Ins & Outs
- Unlimited Field Upgradeable
Why not buy this 1080p 6x6 AV Over IP Matrix Switcher today?
6x6 AV Over IP Matrix 1080p Switcher w/Real Time iPad Video Preview Specs:
- Any in, to any out, in any combination
- Distances are up to 450' with CAT6/7
- iPad Control
- 1080p video over an 1G Switch
- Resolutions up to 1920x1080p
- Scalable input and output configurations
- Field Upgradeable
- Many used in Sports Bars & Clubs
HDMI Transmitter (TX) & Receiver (RX) Over LAN Specs:
- Resolutions Supported:
-
- 640 x 480@60Hz
- 480p@60Hz
- 576p@50Hz
- 800 x 600@60Hz
- 1024 x 768@60Hz
- 720p@50Hz
- 720p@60Hz
-
- 1280 x 800@60Hz
- 1280 x 1024@60Hz
- 1366 x 768@60Hz
- 1400 x 1050@60Hz
- 1440 x 900@60Hz
- 1680 x 1050@60Hz
-
- 1920 x 540@60Hz
- 1080p@24Hz
- 1080p@25Hz
- 1080p@30Hz
- 1080p@50Hz
- 1080p@60Hz
- HDMI 2.0 & HDCP 2.2 Compliant
- POE or can be powered w/optional power supply
- No need to set IP settings as it's plug & play
- WEB GUI control for IP address, video wall, EDID, etc
- Supports renaming the sources and displays
- 3-pin audio on TX and RX
- EDID preset & learning
- ~50ms Low latency with Low latency mode
- ~250 ms latency in High quality mode
- Both Video Wall mode & matrix switch modes
- Supports iPad APP control with preview function
- iPad & Android tablets are not supplied
The HDMI Transmitter and Receiver Over LAN Set allows you to simultaneously support an HDMI 2.0 Signal (including 1080p video with 5.1 audio) to one or more HDMI video projectors or LCD Panels using one CAT6/7 cable over a standard Ethernet infrastructure.
Why not buy this 1080p 6x6 AV Over IP Matrix Switcher today?
Links to Documents, Software and APPs
Why not buy this 1080p 6x6 AV Over IP Matrix Switcher today?
Links to Documents, Software and APPs
Why not buy this 1080p 6x6 HDMI Over LAN Matrix Switcher today?
What is the WolfPack 1080p 6x6 HDMI over IP matrix switcher?
A: The WolfPack 1080p 6x6 matrix switcher distributes HDMI video and audio over a Gigabit Ethernet network. It uses network transmitters and receivers to route sources to multiple displays.
The 6x6 configuration provides 6 HDMI source input(s) and 6 display outputs, with 1080p distribution, flexible routing, tablet/PC control, and video wall capabilities.
How many sources and displays does the 6x6 system support?
A: The 6x6 system supports 6 source input(s) and 6 outputs. An operator can route a source to one output, several outputs, or all available outputs.
This flexible matrix architecture is useful when different displays need different content or when one source needs to be distributed to multiple screens.
How far can the HDMI signal be extended?
A: The system can distribute 1080p video up to approximately 450 feet over CAT6/7 cabling through the LAN transmitter and receiver architecture.
Proper network equipment and cabling are important for reliable operation. Compatible PoE endpoints can also receive power through the network connection.
Can any input be routed to any output?
A: Yes. The matrix supports any-input-to-any-output routing, including sending one source to multiple outputs or distributing different sources to different displays.
Routing can be managed through supported iPad, Android, and Windows control methods, making it practical for installations where display assignments need to change.
Does the system provide real-time iPad video preview?
A: Yes. A major feature is wireless real-time source preview on an iPad. The operator can see live source video before deciding which source to send to a display.
This makes source identification easier in applications with multiple receivers or channels. Android tablet preview/control is also supported on the listed systems.
Does the matrix support video walls?
A: Yes. The systems include video wall processing and can combine outputs into coordinated video wall configurations. The listed systems support 1080p-class output processing.
This allows the same infrastructure to be used for conventional matrix switching and multi-display video wall applications, subject to the specific model configuration.
Does the system support Power over Ethernet?
A: The listed AV-over-IP configurations use PoE-compatible transmitters and receivers, allowing network infrastructure to provide power as well as data to supported endpoints.
PoE can simplify installations by reducing separate power connections at endpoint locations. A managed PoE switch with adequate power capacity should be selected for the complete system.
Does the system support VLAN networking?
A: Yes. The applicable WolfPack AV-over-IP systems support VLAN operation, allowing AV traffic to be isolated from other network traffic while devices assigned to the same VLAN communicate across the network.
The network architecture can also support cascaded Ethernet switches, which can help extend systems across multiple rooms or floors when the network is properly designed.
What resolutions and video standards are supported?
A: The systems support video formats up to 1920x1080p, with additional lower-resolution formats listed for the transmitter and receiver. The exact HDMI, HDCP, and compression standards vary by model.
The 6x6 model is specified with HDMI 2.0 / HDCP 2.2. Users should match the selected model to the HDMI/HDCP requirements of the source and display equipment.
What are the latency and switching characteristics?
A: The 2x6, 3x6, and 4x6 systems specify approximately 80 ms latency and seamless four-frame switching around 60 ms. These characteristics are intended to provide responsive source changes over the IP network.
The 6x6 model provides selectable modes, with approximately 50 ms latency in low-latency mode and about 250 ms in high-quality mode. Actual performance can depend on network conditions and operating mode.
